Product description

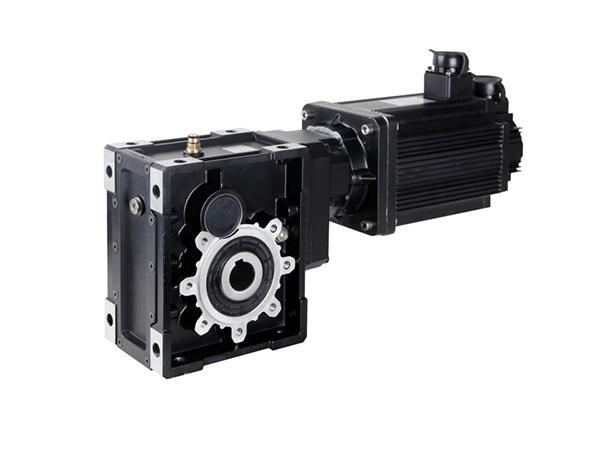

The 5500W spiral bevel gearbox speed reducer is made of 20CrMnTi. It also adopts carbonitriding to improve the hardness.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
68	716	20	20.73	4610	0.9	BKM1102 MV132S4	BKM1102 132B5	132S4
93	522	15	15.11	4150	1.0
109	443	12.5	12.84	3930	1.7
136	354	10	10.27	3650	1.8
187	259	7.5	7.49	3280	2.0

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 5500W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer adjustable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
