Product description

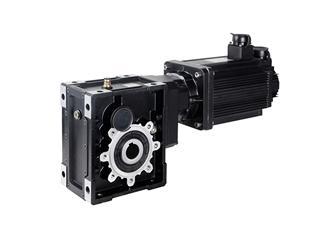

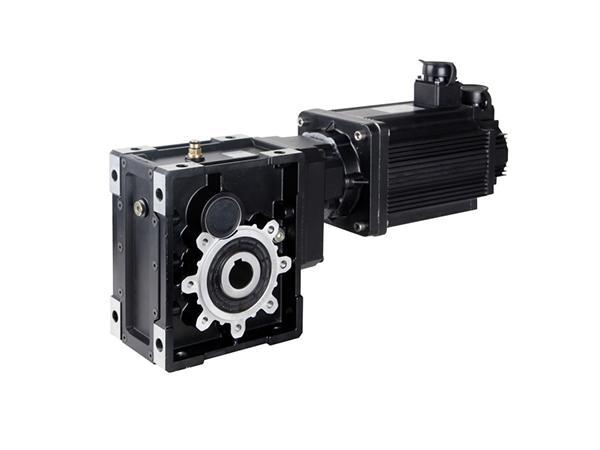

The 370W spiral bevel gearbox speed reducer adopts all-geared vice transmission by drawing from the structure of SEW gear reducer while still keeping the compatibility of the installation dimension of this speed reducer and NMRV worm gear speed reducer. Thus, the meshing friction is small so that the transmission efficiency can be higher and the service life can be longer.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
23	137	125	120.34	2990	0.95	BKM0503 MV6332	BKM0503 71B5/B14	7112
28	115	100	101.04	2820	0.87
38	85	75	74.62	2550	0.94
45	71	60	62.36	2400	1.8
53	59	50	52.36	2270	1.7
24	136	60	58.36	2960	0.96	BKM0502 MV7124	BKM0502 71B5/B14	7124
29	113	50	48.86	2790	1.1
35	93	40	40.09	2610	1.4
48	68	30	29.33	2350	1.9
58	56	25	24.07	2200	2.3
69	47	20	20.21	2080	2.1	BKM0502 MV7124	BKM0502 71B5/B14	7124
94	35	15	14.92	1880	2.3
112	29	12.5	12 47	1770	4.5
134	24	10	10.47	1670	4.1
181	17.9	7.5	7.73	1510	4.5
22	145	40	40.09	3030	0.9	BKM0502 MV8016	BKM0502 80B5/B14	8016
31	106	30	29.33	2730	1.2
37	87	25	24.07	2550	1.5
45	73	20	20.21	2410	1.4
60	54	15	14.92	2180	1.5
72	45	12.5	12 47	2050	2.9
86	38	10	10.47	1930	2.6
116	28	7.5	7.73	1750	2.9
18.5	172	150	151.56	3690	1.2	BKM0633 MV6332	BKM0633 71B5/B14	7112
23	139	125	122.22	3440	1.3
28	115	100	101.27	3230	1.3
38	83	75	73.33	2900	1.3
44	72	60	63.33	2760	2.5
53	60	50	52.48	2590	2.5
22	144	60	63.33	3480	1.3	BKM0633 MV7124	BKM0633 71B5/B14	7124
27	119	50	52.48	3270	1.3
23	140	60	60.50	3430	1.4
29	113	50	48.71	3190	1.8
36	91	40	39 29	2970	2.0
46	70	30	30.31	2720	2.8
57	57	25	2444	2530	3.2
69	47	20	20.25	2380	3.2
95	34	15	14.67	2130	3.2
14.9	219	60	60.50	3970	0.92	BKM0632 MV8016	BKM0632 80B5/B14	8016
18.5	176	50	48.71	3690	1.1
23	142	40	39.29	3440	1.3
30	109	30	30.31	3150	1.8
37	88	25	24.44	2930	2.0
44	73	20	20.25	2760	2.1
61	53	15	14.67	2470	2.1
71	46	12.5	12 67	2360	3.9
86	38	10	10.50	2210	4.0
118	27	7.5	7.60	1990	4.0
9.4	338	300	297.21	6320	1.0	BKM0753 MV6332	BKM0753 71B5	7112
11.6	274	250	240.89	5890	1.3
14.0	228	200	200.66	5540	1.3
18.5	172	150	151.20	5040	2.0
22	143	125	125.95	4750	2.1
28	113	100	99.22	4380	2.1
37	86	75	75.45	4000	2.3
45	71	60	62.43	3750	4.2
57	56	50	49.18	3470	4.3
9.3	343	150	151.20	6500	1.0	BKM0753 MV7124	BKM0753 71B5	7124
11.1	286	125	125.95	5980	1.0
14.1	225	100	99.22	5520	1.1
18.6	171	75	75.45	5040	1.2
22	142	60	62.43	4730	2.1
28	112	50	49.18	4370	2.1
24	138	60	59.44	4660	2.5	BKM0752 MV7124	BKM0752 71B5	7124
29	112	50	48.18	4340	3.1
35	93	40	40.13	4080	3.2
14.4	221	60	62.43	5480	1.4	BKM0753 MV8016	BKM0753 80B5/B14	8016
18.3	174	50	49.18	5060	1.4
15.1	215	60	59.44	5390	1.6	BKM0752 MV8016	BKM0752 80B5/B14	8016
18.7	174	50	48.18	5030	2.0
22	145	40	40.13	4730	2.1
30	109	30	30.24	4310	3.2
36	91	25	25.19	4050	3.3
45	72	20	19.84	3740	3.3
60	55	15	15.09	3410	3.7
9.5	335	300	295.18	7990	1.5	BKM0903 MV6332	BKM0903 71B5	7112
11.6	274	250	240.89	7470	1.8
14.0	228	200	200.66	7030	2.1
18.5	172	150	151.20	6390	2.9
22	143	125	125.95	6010	3.4
28	113	100	99.22	5550	3.4
37	86	75	75.45	5070	3.5
4.7	671	300	295.18	8300	0.75	BKM0903 MV7124	BKM0903 71B5	7124
5.8	547	250	240.89	8300	0.91
7.0	456	200	200.66	8300	1.1
9.3	343	150	151.2	8050	1.5
11.1	286	125	125.95	7580	1.7
14.1	225	100	99.22	7000	1.7
18.6	171	75	75.45	6390	1.8
22	142	60	62.43	6000	3.4
28	112	50	49.18	5540	3.4
24	137	60	59.04	5890	3.6	BKM0902 MV7124	BKM0902 71B5	7124
29	112	50	48.18	5500	4.5
6.0	534	150	151.20	8300	0.94	BKM0903 MV8016	BKM0903 80B5/B14	8016
7.1	445	125	125.95	8300	1.1
9.1	351	100	99.22	8110	1.1
11.9	267	75	75.45	7400	1.1
14.4	221	60	62.43	6950	2.2
18.3	174	50	49.18	6420	2.2
15.2	213	60	59.04	6820	2.3	BKM0902 MV8016	BKM0902 80B5/B14	8016
18.7	174	50	48 18	6370	2.9
22	145	40	40.13	6000	3.3
9.5	336	300	296 10	8880	2.2	BKM1103 MV6332	BKM1103 71B5	7112
11.5	277	250	244.29	8330	2.7
13.6	234	200	206.29	7870	3.2
18.3	174	150	153.33	7130	4.3
4.7	673	300	296.10	10000	1.1	BKM1103 MV6332	BKM1103 80B5	7124
5.7	555	250	244.29	10000	1.4
6.8	469	200	206.29	9920	1.6
9.1	348	150	153.33	8980	2.2
10.8	294	125	129.48	8490	2.5
13.5	235	100	103.64	7880	2.8
18.5	172	75	75.55	7090	3.0
44	729	200	206 29	10000	1.0	BKM1103 MV8016	BKM1103 80B5	8016
5.9	542	150	153.33	10000	1.4
7.0	458	125	129 48	9840	1.6
8.7	366	100	103.64	9130	1.8
11.9	267	75	75.55	8220	1.9
14.0	227	60	64.18	7780	3.3
17.5	182	50	51.37	7230	3.6
15.2	214	60	59.22	7580	3.5	BKM1102 MV8016	BKM1102 80B5	8016
18.4	176	50	48.86	7110	4.2

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 370W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer adjustable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
