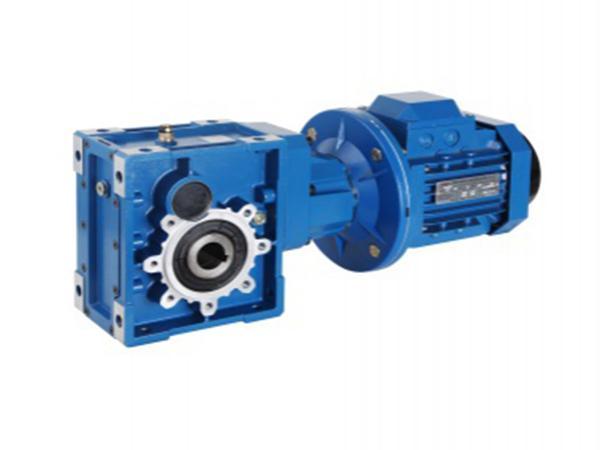

Product description

The surface of 180W spiral bevel gearbox speed reducer is treated by shot blasting first and then anti-corrosion treated so that it is gasoline, xylene and some other organic solvent resistant.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
9.6	161	300	291.79	4000	0.81	BKM0503 MV6312	BKM0503 63B5	6312
11.5	135	250	244.29	3790	0.96
14.0	111	200	200.44	3550	1.2
19.1	81	150	146.67	3200	1.6
23	66	125	120.34	2990	2.0
28	56	100	101.04	2820	1.8
38	41	75	74.62	2550	1.9
45	34	60	62.36	2400	3.8
53	29	50	52.36	2270	3.5
11.6	133	125	120.34	3770	0.98	BKM0503 MV6324	BKM0503 63B5	6324
13.9	112	100	101.04	3560	0.9
18.8	82	75	74.62	3220	0.97
22	69	60	62.36	3030	1.9
27	58	50	52.36	2860	1.7
24	66	60	58.36	2960	2.0	BKM0502 MV6324	BKM0502 63B5	6324
29	55	50	48.86	2790	2.4
35	45	40	40.09	2610	2.9
48	33	30	29.33	2350	3.9
58	27	25	24.07	2200	4.8
69	23	20	20.21	2080	4.4
94	17.2	15	14.92	1880	4.7
14.4	107	60	62.36	3510	1.2	BKM0503 MV7116	BKM0503 71B5/B14	7116
17.2	90	50	52.36	3310	1.1
15.4	103	60	58.36	3430	1.3	BKM0502 MV7116	BKM0502 71B5/B14	7116
18.4	86	50	48.86	3240	1.5
22	70	40	40.09	3030	1.8
31	52	30	29.33	2730	2.5
37	42	25	24.07	2550	3.1
45	36	20	20.21	2410	2.8
60	26	15	14.92	2180	3.1
72	22	12.5	12.47	2050	5.9
86	18.4	10	10.47	1930	5.4
116	13.6	7.5	7.73	1750	5.9
9.3	167	300	302.50	4650	1.2	BKM0633 MV6312	BKM0633 63B5	6312
11.5	135	250	243.57	4330	1.5
14.3	109	200	196.43	4030	1.7
18.5	84	150	151.56	3690	2.4
23	68	125	122.22	3440	2.7
28	56	100	101.27	3230	2.7
38	41	75	73.33	2900	2.7
44	35	60	63.33	2760	5.1
53	29	50	52.48	2590	5.2
7.1	217	200	196.43	4800	0.83	BKM0633 MV6324	BKM0633 63B5	6324
9.2	167	150	151.56	4650	1.2
11.5	135	125	122.22	4330	1.3
13.8	112	100	101.27	4070	1.3
19.1	81	75	73.33	3650	1.4
22	70	60	63.33	3480	2.6
27	58	50	52.48	3270	2.6
23	68	60	60.50	3430	2.9	BKM0632 MV6324	BKM0632 63B5	6324
29	55	50	48.71	3190	3.6
36	44	40	39.29	2970	4.1
7.4	210	125	122.22	4800	0.86	BKM0633 MV7116	BKM0633 71B5/B14	7116
8.9	174	100	101.27	4720	0.86
12.3	126	75	73.33	4230	0.87
14.2	109	60	63.33	4030	1.7
17.1	90	50	52.48	3790	1.7
14.9	106	60	60.50	3970	1.9	BKM0632 MV7116	BKM0632 71B5/B14	7116
18.5	86	50	48.71	3690	2.3
23	69	40	39.29	3440	2.6
30	53	30	30.31	3150	3.8
37	43	25	24.44	2930	4.2
44	36	20	20.25	2760	4.2
61	26	15	14.67	2470	4.3
9.4	164	300	297.21	6320	2.1	BKM0753 MV6312	BKM0753 63B5	6312
11.6	133	250	240.89	5890	2.6
14.0	111	200	200.66	5540	2.7
18.5	84	150	151.20	5040	4.2
4.7	328	300	297.21	6500	1.1	BKM0753 MV6324	BKM0753 63B5	6324
5.8	266	250	240.89	6500	1.3
7.0	222	200	200.66	6500	1.4
9.3	167	150	151.20	6500	2.1
11.1	139	125	125.95	5980	2.2
14.1	110	100	99.22	5520	2.2
18.6	83	75	75.45	5040	2.4
3.7	414	250	240.89	6500	0.85	BKM0753 MV7116	BKM0753 71B5	7116
4.5	345	200	200.66	6500	0.87
6.0	260	150	151.20	6500	1.3
7.1	217	125	125.95	8300	2.2
9.1	171	100	99.22	8110	2.2
14.4	107	60	62.43	5480	2.8
18.3	85	50	49.18	5060	2.8
15.1	107	60	59.44	5390	3.4	BKM0752 MV7116	BKM0752 71B5	7116
18.7	85	50	48.18	5030	4.1
22	71	40	40.13	4730	4.3
9.5	163	300	295.18	7990	3.1	BKM0903 MV6312	BKM0903 63B5	7116
11.6	133	250	240.89	7470	3.8
14.0	111	200	200.66	7030	4.3
4.7	326	300	295.18	8300	1.5	BKM0903 MV6324	BKM0903 63B5	6312
5.8	266	250	240.89	8300	1.9
7.0	222	200	200.66	8300	2.2
9.3	167	150	151.20	8050	3.0
11.1	139	125	125.95	7580	3.4
14.1	110	100	99.22	7000	3.5
18.6	83	75	75.45	6390	3.6
3.0	507	300	295.18	8300	1.0	BKM0903 MV7116	BKM0903 71B5	6324
3.7	414	250	240.89	8300	1.2
4.5	345	200	200.66	8300	1.4
6.0	260	150	151.20	8300	1.9
7.1	217	125	125.95	8300	2.2
9.1	171	100	99.22	8110	2.2
11.9	130	75	75.45	7400	2.3
14.4	107	60	62.43	6950	4.5
18.3	85	50	49.18	6420	4.5
3.0	520	300	296.10	10000	1.5	BKM1103 MV7116	BKM1103 71B5	7116
3.7	420	250	244.29	10000	1.8
4.4	355	200	206.29	10000	2.1
5.9	264	150	153.33	10000	2.8
7.0	223	125	129.48	9840	3.4
8.7	178	100	103.64	9130	3.6
11.9	130	75	75.55	8220	4.0

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 180W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
