Product description

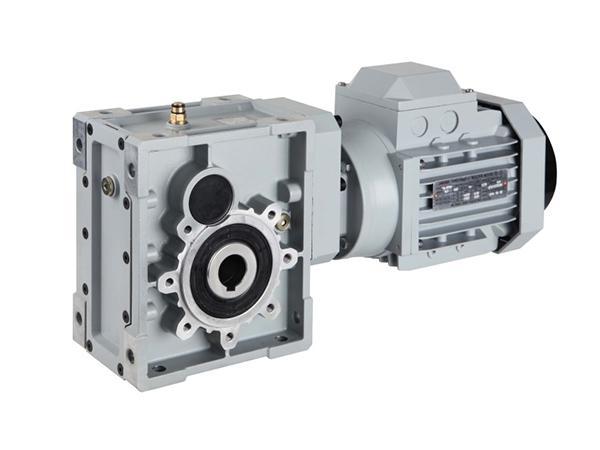

The 550W spiral bevel gearbox speed reducer is made of superior alloy of which the surface is hardened. This speed reducer adopts high precision gear grinding machine for machining. The gear is a kind of hardened face gear of which the strength and service life is greatly higher and longer than that of the worm gear speed reducer.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
48	138	30	29.33	2350	0.94	BKM0502 MV8024	BKM0502 80B5/B14	8024
58	113	25	24.07	2200	1.1
69	95	20	20.21	2080	1.1
94	70	15	14.92	1880	1.1
112	59	12.5	12.47	1770	2.2
134	49	10	10.47	1670	2.0
181	36	7.5	7.73	1510	2.2
72	91	12.5	12.47	2050	1.4	BKM0502 MV90S6	BKM0502 90B5/B14	90S6
86	77	10	10.47	1930	1.3
116	57	7.5	7.73	1750	1.4
44	146	60	63.33	2760	1.2	BKM0633 MV8012	BKM0633 80B5/B14	8012
53	121	50	52.48	2590	1.2
29	229	50	48.71	3190	0.87	BKM0632 MV8024	BKM0632 80B5/B14	8024
36	185	40	39.29	2970	0.97
46	143	30	30.31	2720	1.4
57	115	25	24.44	2530	1.6
69	95	20	20.25	2380	1.6
95	69	15	14.67	2130	1.6
110	60	12.5	12.67	2030	3.0
133	49	10	10.50	1910	3.0
184	36	7.5	7.60	1710	3.1
30	222	30	30.31	3150	0.9	BKM0632 MV90S6	BKM0632 90B5/B14	90S6
37	179	25	24.44	2930	1.0
44	148	20	20.25	2760	1.0
61	107	15	14.67	2470	1.0
71	93	12.5	12.67	2360	1.9
86	77	10	10.50	2210	2.0
118	56	7.5	7.60	1990	2.0
18.5	348	150	151.20	5040	1.0	BKM0753 MV8012	BKM0753 80B5/B14	8012
22	290	125	125.95	4750	1.0
28	228	100	99.22	4380	1.1
37	174	75	75.45	4000	1.2
45	144	60	62.43	3750	2.1
57	113	50	49.18	3470	2.1
22	287	60	62.43	4730	1.0	BKM0753 MV8024	BKM0753 80B5/B14	8024
28	226	50	49.18	4370	1.1
24	280	60	59.44	4660	1.3	BKM0752 MV8024	BKM0752 80B5/B14	8024
29	227	50	48.18	4340	1.5
35	189	40	40.13	4080	1.6
46	142	30	30.24	3720	2.5
56	119	25	25.19	3500	2.5
71	93	20	19.84	3230	2.6
93	71	15	15.09	2950	2.8
18.7	353	50	48.18	5030	1.0	BKM0752 MV90S6	BKM0752 90B5/B14	90S6
22	294	40	40.13	4730	1.0
30	221	30	30.24	4310	1.6
36	184	25	25.19	4050	1.6
45	145	20	19.84	3740	1.7
60	110	15	15.09	3410	1.8
72	91	12.5	12.49	3210	3.3
91	72	10	9.84	2960	3.3
120	55	7.5	7.48	2700	3.7
11.6	555	250	240.89	7470	0.9	BKM0903 MV8012	BKM0903 80B5/B14	8012
14.0	462	200	200.66	7030	1.0
18.5	348	150	151.20	6390	1.4
22	290	125	125.95	6010	1.7
28	228	100	99.22	5550	1.7
37	174	75	75.45	5070	1.7
45	144	60	62.43	4760	3.3
57	113	50	49.18	4390	3.4
11.1	580	125	125.95	7580	0.83	BKM0903 MV8024	BKM0903 80B5/B14	8024
14.1	457	100	99.22	7000	0.83
18.6	247	75	75.45	6390	0.86
22	287	60	62.43	6000	1.7
28	226	50	49.18	5540	1.7
24	278	60	59.04	5890	1.8	BKM0902 MV8024	BKM0902 80B5/B14	8024
29	227	50	48.18	5500	2.2
35	189	40	40.13	5170	2.5
46	142	30	30.24	4710	3.5
56	119	25	25.19	4430	4.0
71	93	20	19.84	4090	4.1
93	71	15	15.09	3730	4.2
14.4	447	60	62.43	6950	1.1	BKM0903 MV90S6	BKM0903 90B5/B14	90S6
18.3	352	50	49.18	6420	1.1
15.2	432	60	59.04	6820	1.2	BKM0902 MV90S6	BKM0902 90B5/B14	90S6
18.7	353	50	48.18	6370	1.4
22	294	40	40.13	6000	1.6
30	221	30	30.24	5460	2.3
36	184	25	25.19	5130	2.6
45	145	20	19.84	4740	2.6
60	110	15	15.09	4330	2.7
9.5	682	300	296.10	8880	1.1	BKM1103 MV8012	BKM1103 80B5	8012
11.5	562	250	244.29	8330	1.3
13.6	475	200	206.29	7870	1.6
18.3	353	150	153.33	7130	2.1
22	298	125	129.48	6740	2.5
27	239	100	103.64	6260	2.7
37	174	75	75.55	5630	3.0
9.1	706	150	153.33	8980	1.1	BKM1103 MV8024	BKM1103 80B5	8024
10.8	596	125	129.48	8490	1.3
13.5	477	100	103.64	7880	1.4
18.5	348	75	75.55	7090	1.5
22	296	60	64.18	6720	2.5
27	237	50	51.37	6240	2.7
24	279	60	59.22	6540	2.7	BKM1102 MV8024	BKM1102 80B5	8024
29	230	50	48.86	6130	3.3
34	194	40	41.26	5800	3.9
8.7	742	100	103.64	9130	0.88	BKM1103 MV90S6	BKM1103 90B5/B14	90S6
11.9	541	75	75.55	8220	0.96
14.0	460	60	64.18	7780	1.6
17.5	368	50	51.37	7230	1.8
15.2	434	60	59.22	7580	1.7	BKM1102 MV90S6	BKM1102 90B5/B14	90S6
18.4	358	50	48.86	7110	2.1
22	302	40	41.26	6720	2.5
29	225	30	30.67	6090	3.3
35	190	25	25.90	5750	4.0
43	152	20	20.73	5340	4.3

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 750W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
